Now Patched Vulnerability in WhatsApp could have led to data exposure of users

September 2, 2021

Research by Dikla Barda & Gal Elbaz

As of 2021, WhatsApp is the most popular global mobile messenger app worldwide with approximately two billion monthly active users. It allows users to send text and voice messages, make voice and video calls, and share images, documents, user locations, and other content.

Check Point Research (CPR) recently revealed a new Out-Of-Bounds read-write vulnerability in the popular messaging application. The issue, which has been patched and remains theoretical, would have required complex steps and extensive user interaction in order to exploit, and could have allowed an attacker to read sensitive information from WhatsApp memory. WhatsApp confirmed that they saw no evidence of abuse related to this vulnerability.

The vulnerability related to the WhatsApp image filter functionality and was triggered when a user opened an attachment that contained a maliciously crafted image file, then tried to apply a filter, and then sent the image with the filter applied back to the attacker.

Following the process of coordinated disclosure, Check Point Research disclosed the findings to the WhatsApp team on November 10, 2020.
WhatsApp verified and acknowledged the security issue and developed a fix.
The fix is available since version 2.21.1.13. and has two new checks on the source image and filter image

Technical Details:

Approximately 55 billion messages are sent daily over WhatsApp, with 4.5 billion photos and 1 billion videos shared per day.

We focused our research on the way WhatsApp processes and sends images.
We started with a few image types such as bmp, ico, gif, jpeg, and png, and used our AFL fuzzing lab at Check Point to generate malformed files.
The AFL fuzzer takes a set of input files and applies various modifications to them in a process called mutation. This generates a large set of modified files, which are then used as input in a target program. When the tested program crashes or hangs due to these crafted files, this might suggest the discovery of a new bug, possibly a security vulnerability.
Now that we had a set of inputs for our fuzzing target (“corpus”), we started to fuzz the interesting WhatsApp libraries.
During the process, we noticed that some of the images couldn’t be sent. We looked for other ways of using those images, and one of the operations we thought of was image filters.
An image filter is a process through which pixels of the original image are modified to achieve some visual effects (e.g. blur, sharpen, etc.). This makes filters a very promising candidate to cause a crash, as a lot of computations occur on the image file during the filter application, which involves reading the image contents, manipulating the pixel values, and writing data to a new destination image.

We found that switching between various filters on crafted GIF files indeed caused WhatsApp to crash.

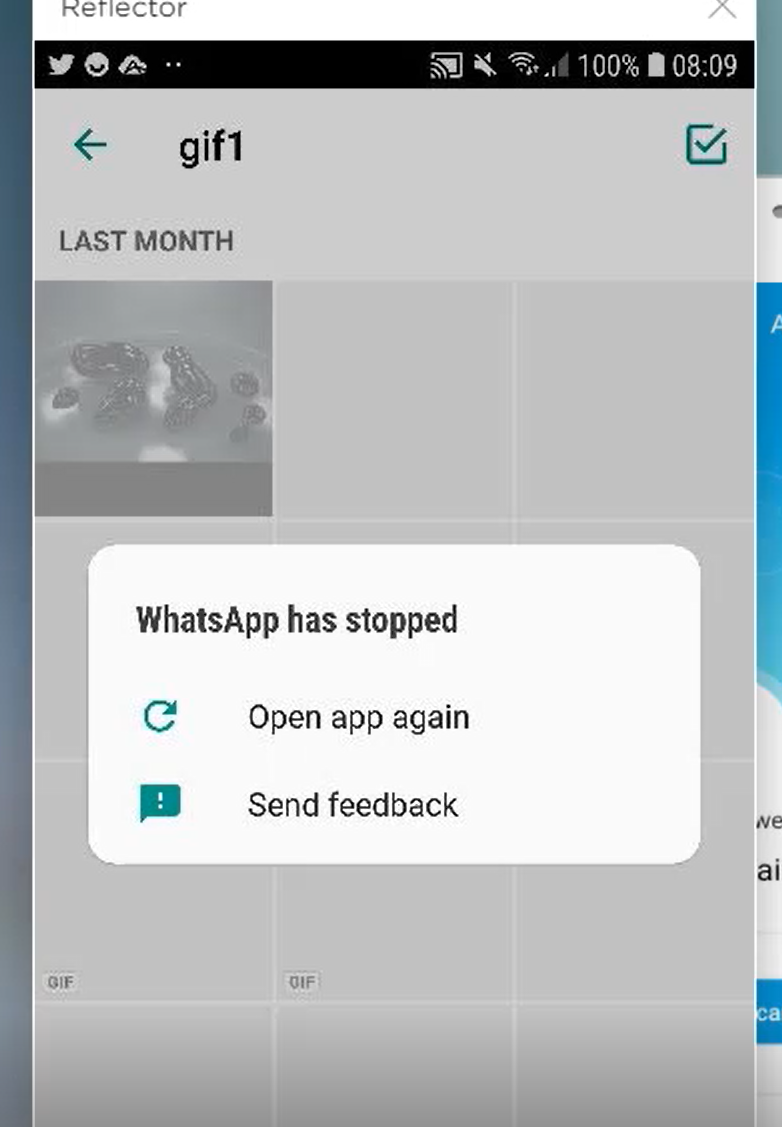

Figure 1 :WhatsApp crash screenshot.

We connected the phone to our lab and captured the crash location using adb logcat:

11-08 13:45:00.382  5278  5278 F DEBUG   : pid: 5099, tid: 5171, name: WhatsApp Worker  >>> com.whatsapp <<<

11-08 13:45:00.382  5278  5278 F DEBUG   : signal 11 (SIGSEGV), code 1 (SEGV_MAPERR), fault addr 0x718e400000

11-08 13:45:00.382  5278  5278 F DEBUG   :     x0   0000000000000320  x1   0000000000000000  x2   000000718e3ff8c0  x3   00000071a11b47c0

11-08 13:45:00.382  5278  5278 F DEBUG   :     x4   000000718e3ff8c0  x5   0000000000000000  x6   0000000000000005  x7   0000000000000007

11-08 13:45:00.382  5278  5278 F DEBUG   :     x8   00000000000000e2  x9   0000000000000320  x10  0000000000000258  x11  0000000000000c80

11-08 13:45:00.382  5278  5278 F DEBUG   :     x12  000000000000001f  x13  0000000000000150  x14  000000718e400000  x15  000000718e400000

11-08 13:45:00.382  5278  5278 F DEBUG   :     x16  00000000ff000000  x17  0000000000000000  x18  0000000000000003  x19  0000000000000005

11-08 13:45:00.382  5278  5278 F DEBUG   :     x20  0000000000000001  x21  00000071c3f77abc  x22  0000000000000000  x23  00000071c3f78588

11-08 13:45:00.382  5278  5278 F DEBUG   :     x24  0000000012ce9e90  x25  0000000012d40828  x26  0000000013583220  x27  0000000012d46778

11-08 13:45:00.382  5278  5278 F DEBUG   :     x28  0000000012d46998  x29  00000071c3f77a90  x30  00000071c6dca1c8

11-08 13:45:00.382  5278  5278 F DEBUG   :     sp   00000071c3f77a00  pc   00000071c6dca258  pstate 0000000020000000

11-08 13:45:00.383  5278  5278 F DEBUG   :

11-08 13:45:00.383  5278  5278 F DEBUG   : backtrace:

11-08 13:45:00.383  5278  5278 F DEBUG   :     #00 pc 0000000000042258  /data/data/com.whatsapp/files/decompressed/libs.spk.zst/libwhatsapp.so

11-08 13:45:00.383  5278  5278 F DEBUG   :     #01 pc 00000000000421c4  /data/data/com.whatsapp/files/decompressed/libs.spk.zst/

11-08 13:45:00.383  5278  5278 F DEBUG   :     #02 pc 00000000005e4bf8  /data/app/com.whatsapp-LFoGvXqXx1IH1wEGoNLxrg==/oat/arm64/base.odex (offset 0x4e7000)

11-08 13:48:00.459  5290  5328 F libc    : Fatal signal 11 (SIGSEGV), code 1, fault addr 0x71b5200000 in tid 5328 (WhatsApp Worker)

11-08 13:48:01.073  5290  5328 F libc    : crash_dump helper failed to exec

11-08 13:48:09.339  6005  6108 F libc    : Fatal signal 11 (SIGSEGV), code 1, fault addr 0x71b5a00000 in tid 6108 (WhatsApp Worker)

11-08 13:48:09.402  6139  6139 F DEBUG   : *** *** *** *** *** *** *** *** *** *** *** *** *** *** *** ***

After some reverse engineering to review the crashes we got from the fuzzer, we found an interesting crash that we identified as a memory corruption.
Before we continued our investigation we reported the issue to WhatsApp, which gave us a name for this vulnerability: CVE-2020-1910 Heap-Based out-of-bounds read and write.
What’s important about this issue is that given a very unique and complicated set of circumstances, it could have potentially led to the exposure of sensitive information from the WhatsApp application.

CVE-2020-1910

Now that we know we have Heap Based out of bounds read and write according to WhatsApp, we started to dig deeper.
We reverse-engineered the libwhatsapp.so library and used a debugger to analyze the root cause of the crash. We found that the vulnerability resides in a native function applyFilterIntoBuffer() in libwhatsapp.so library.

Figure 2: applyFilterIntoBuffer function.

The vulnerable function takes as input 3 AndroidBitmap objects:

  • “src_jbitmap” – Represents the input image.
  • “flt_jbitmap” – Represents the filter to apply.
  • “dst_jbitmap” – Holds the result of the new image.

The vulnerable function first calls to “AndroidBitmap_getInfo” on the source and filter images  to get the struct “AndroidBitmapInfo”.
The structure holds the following members: “width”, “height”, “stride” (number of bytes per row), “format” and “flags”.
The function iterates over the source image pixels, calculates new pixel values by applying the filter, and copies them into the destination buffer.
The iteration is performed in a way that causes the source and destination buffers to advance each time by “height” * 4, which represents the column size in bytes (line 55).

Figure 3: applyFilterIntoBuffer.

The problem is that both destination and source images are assumed to have the same dimensions and also the same format RGBA (meaning each pixel is stored as 4 bytes, hence the multiplication by 4).
However, there are no checks performed on the format of the source and destination images.
Therefore, when a maliciously crafted source image has only 1 byte per pixel, the function tries to read and copy 4 times the amount of the allocated source image buffer, which leads to an out-of-bounds memory access.
This is the crash we got in IDA, caused by the program trying to read from an unmapped memory region.

Figure 4: Crash screenshot from IDA.

WhatsApp fix:

WhatsApp introduced the fix in version 2.21.1.13 and disclosed it in their February Security Advisory update.

The fixed function has two new checks on the source image and filter image:

  • Validates that the image format equals 1 (ANDROID_BITMAP_FORMAT_RGBA_8888). This means that both source and filter images must be in RGBA format.
  • Validates image size by checking that the (stride*height)/4 equals width*height.
    Because “stride” equals the number of bytes per pixel multiplied by width, the second check actually ensures that the image indeed has 4 bytes per pixel.

WhatsApp’s Response:

WhatsApp previously disclosed this bug within its February 2021 Security Advisory Report. WhatsApp has shared the following statement for us to include in this report:

“We regularly work with security researchers to improve the numerous ways WhatsApp protects people’s messages, and we appreciate the work that Check Point does to investigate every corner of our app. People should have no doubt that end-to-end encryption continues to work as intended and people’s messages remain safe and secure.

This report involves multiple steps a user would have needed to take and we have no reason to believe users would have been impacted by this bug. That said, even the most complex scenarios researchers identify can help increase security for users. As with any tech product, we recommend that users keep their apps and operating systems up to date, to download updates whenever they’re available, to report suspicious messages, and to reach out to us if they experience issues using WhatsApp.” – WhatsApp

Figure 5: WhatsApp Fix.
