In the past few months, a new wave of cyberattacks has been flooding Iran. These attacks are far from minor website defacements – the recent wave is hitting national infrastructure and causing major disruptions to public services.
This article provides an in-depth technical analysis of one of the attacks against the Iranian national media corporation, Islamic Republic of Iran Broadcasting (IRIB) which occurred in late January 2022.
In July 2021, an attack hit the Iranian national railway and cargo services, and caused “unprecedented disruptions” to the country’s trains. Just a day later, media outlets reported that the website of Iran’s Ministry of Roads and Urban Development, in charge of transportation, was taken down in a ‘cyber disruption’, preventing access to their official portal and sub-services. As if forcing railway employees to update the train schedule manually – across all train stations – wasn’t enough, the message displayed on the train schedule boards referred perplexed passengers to the Supreme Leader’s office phone number. The previously unknown group called ‘Predatory Sparrow’ quickly claimed responsibility for the attacks. Besides that, Check Point Research investigated these attacks and the tools they deployed, and found similar tactics and techniques were used in previous operations against private companies in Syria, linking all of those attacks to anti-regime group called Indra.
Since then, cyber-attacks continue to hit national Iranian entities. Inspecting the targets, it appears that each one was carefully selected to send a tailored message. In August 2021, the hacktivist group Tapandegan, previously known for hacking and displaying protest messages on the electronic flight arrival and departure boards in the Mashad and Tabriz international airports in 2018, released security camera footage from the Evin prison, a Tehran facility in which many political prisoners are held. The videos, which show prisoner abuse, were acquired by a group called Edalat-e Ali (‘Ali’s justice’) in protest against human rights violations. In October 2021, every gas station in Iran was paralyzed by an attack that disrupted the electronic payment process. The incident led to extremely long queues at gas stations for two days and prevented customers from paying with the government-issued electronic cards used to purchase subsidized fuel. When the card was swiped for payment, the Supreme Leader office phone number appeared on the screen, taunting the highest ranking office in the regime yet again. Iranian officials claimed that foreign actors, such as Israel and the US, were behind the attack. However, Predatory Sparrow claimed responsibility for this attack as well.
In November 2021, Iranian airline Mahan Air announced that it foiled an attempted attack against its internal systems, with no harm done. Curiously, this time a group called ‘Hooshyaran-e Vatan’ (Vigilant of the Nation) claimed responsibility, and over the next two months published documents allegedly stolen in the hack that link the airline to the IRGC (Islamic Revolutionary Guard Corps).
Recently, on February 7, 2022, the Edalat-e Ali group released footage from closed-circuit cameras in another Iranian prison, Ghezel Hesar.
Figure 1 – Timeline of latest cyberattacks in Iran.
On January 27, only two weeks before the anniversary of the 1979 Islamic Revolution, reports were published that the IRIB, Iran’s national broadcaster, was hacked. The Islamic Republic of Iran Broadcasting, also called ‘The Voice and Vision of the Islamic Republic of Iran’, is a state-operated monopoly in charge of all radio and television services in Iran. The cyberattack resulted in state-run TV channels broadcasting what was described by IRIB officials as “the faces and voices of hypocrites.”
‘Hypocrites’ is a term used by the Iranian regime to refer to the Mujahedin-e-Khalq (MEK, also called the People’s Mujahedin of Iran), an exiled militant organization and the biggest political opposition group, which advocates overthrowing the current regime and installing its own government, relying on an alternative interpretation of Islam. In the hijacked video, the faces of MEK leaders Maryam and Masoud Rajavi appeared, followed by the image of Ayatollah Khamenei crossed out with red lines and the declaration “Salute to Rajavi, death to (Supreme Leader) Khamenei!.” The deputy head of technical affairs for IRIB, Reza Alidadi, stated that “only the owners of the technology in use by the corporation would have been able to carry out an attack relying on the system features installed on the systems and the exploited backdoor.” He further stated that similar attacks have hit other state-operated radio channels.
Figure 2 – Frame from the video with the opposition leaders’ faces broadcast by state-run Iranian TV channels as a result of the cyber attack.
Although not the part of this investigation, it is worth mentioning that several days later, on February 1, the web-based streaming platform of IRIB, Telewebion, was hijacked yet again to broadcast protest messages urging citizens to rise up against the Supreme Leader and stating that “the regime’s foundations are rattling”. Cleverly, the incident took place in the middle of a live broadcast of the Iran-UAE soccer match. This time, politically motivated group Edalat-e Ali, responsible for the attacks targeting prison facilities’ security cameras, claimed responsibility. This claim is plausible, as the video broadcast during the hack features the group’s logo on the top left corner.
According to Iranian state-run news network Akharin Khabar (Latest News), “the technical and broadcasting systems are completely isolated, they are equipped with acceptable security protocols and are not accessible via the Internet.” In the same post, it was reported that security forces associated with the regime’s state broadcasting network considered sabotage as the most likely scenario, with the Iranian officials calling the attack “extremely complex.”
It is still not clear how the attackers gained initial access to these networks. We were able to retrieve only the files related to the later stages of these attacks, responsible for:
All of these samples were uploaded to VirusTotal (VT) from multiple sources, mostly with Iranian IPs, and included short batch scripts that install or launch payloads, several forensics artifacts like Windows Event Log files or memory dumps, and the payloads themselves. The latter are mostly .NET executables, with no obfuscation but a timestamped compilation date in the future. In addition to having the same language and same VT submitters, these files also share other similarities, such as PDB paths, common commands, names, code reuse, and general coding style.
From the MP4 video file that was used to interrupt the TV stream, and was uploaded to VT as
TSE_90E11.mp4, we were able to pivot to other artifacts related to the broadcast hijacking, supposedly run on servers that broadcast TV programs (playouts). To play the video file, the attackers used a program called
SimplePlayout.exe, a .NET-based executable compiled in debug mode with the PDB path
c:\work\SimplePlayout\obj\Debug\SimplePlayout.pdb. This executable has a single functionality: to play a video file in a loop using the .NET MPlatform SDK by Medialooks.

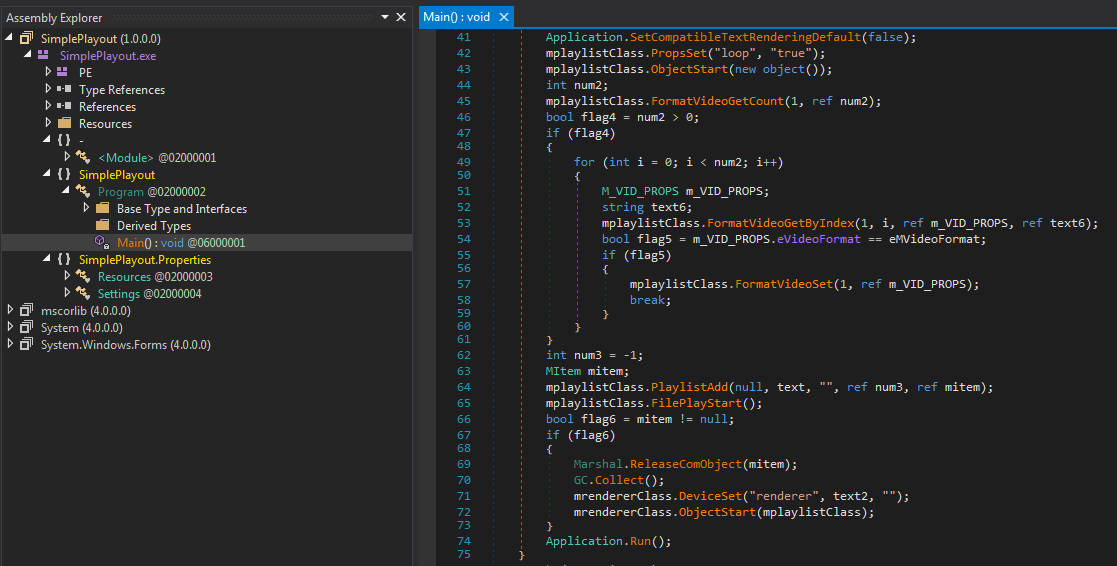

Figure 3 – Part of the SimplePlayout code using MPlatform SDK to play the video file.
First, the SimplePlayout program looks for a configuration file called
SimplePlayout.ini which contains two lines: the video file path, and a number representing the video format. The respective
SimplePlayout.ini file uploaded together with SimplePlayout specifies the values that correspond to the MP4 file located at
c:\windows\temp\TSE_90E11.mp4 and a video format of HD 1080i with a refresh rate of 50 Hz.
To kill the video stream already playing, the attackers used a batch script called
playjfalcfgcdq.bat. It kills the running process and deletes the executable of TFI Arista Playout Server, a software which the IRIB is known to use for broadcasting, and subsequently uninstalls the Matrox DSX driver, a part of the software for media processing in virtualized broadcast infrastructures,
To combine all the malicious components, another script
layoutabcpxtveni.bat does several things:
TSE_90E11.mp4. This file was probably dropped there by one of the backdoors, which we discuss later.
QTV.CG.Server.exe, possibly a part of Autocue QTV broadcasting software, and overwrites the original server located at
D:\CG 1400\QTV.CG.Server.exewith SimplePlayout, the tool used by the attackers to play their video.
SimplePlayout.iniin the same directory where
QTV.CG.Server.exeresides. At least this sample of the batch script contains a typo, as the actors probably meant to copy
SimplePlayout.ininext to the malicious executable.
SimplePlayout.exefrom both the initial and replaced locations.
In another set of related artifacts that we discovered, the attackers utilize the WAV file containing the 25 seconds audio track titled
TSE_90E11.001, similar to the file name of the MP4 file used in the hijacked TV stream. An executable called
Avar.exe is based on NAudio, an open-source .NET audio library, and is responsible for playing the WAV file. Unlike the
Avar.exe does not rely on the configuration file. Instead, it contains the path to the WAV file hardcoded as
C:\windows\temp\TSE_90E11.001. After it executes,
Avar.exe attempts to enumerate through all active audio devices and play the WAV file on each one.
Finally, a batch script named
avapweiguyyyw.bat puts the pieces together. It kills a process called
ava.exe and replaces the executable at
C:\Program Files\MIT\AVA\ava.exe with
Avar.exe. The use of the name Ava in the files and folders might suggest that these files were intended for IRIB’s AVA radio, although the fact it was also impacted by this attack has not been confirmed officially.
We found two identical .NET samples named
msdskint.exe whose main purpose is to wipe the computer’s files, drives, and MBR. This can also be deduced from the PDB path:
C:\work\wiper\Wiper\obj\Release\Wiper.pdb. In addition, the malware has the capability to clear Windows Event Logs, delete backups, kill processes, change users’ passwords, and more. Both samples were uploaded to VT by the same submitters and in the same timeframe as the previously discussed artifacts.

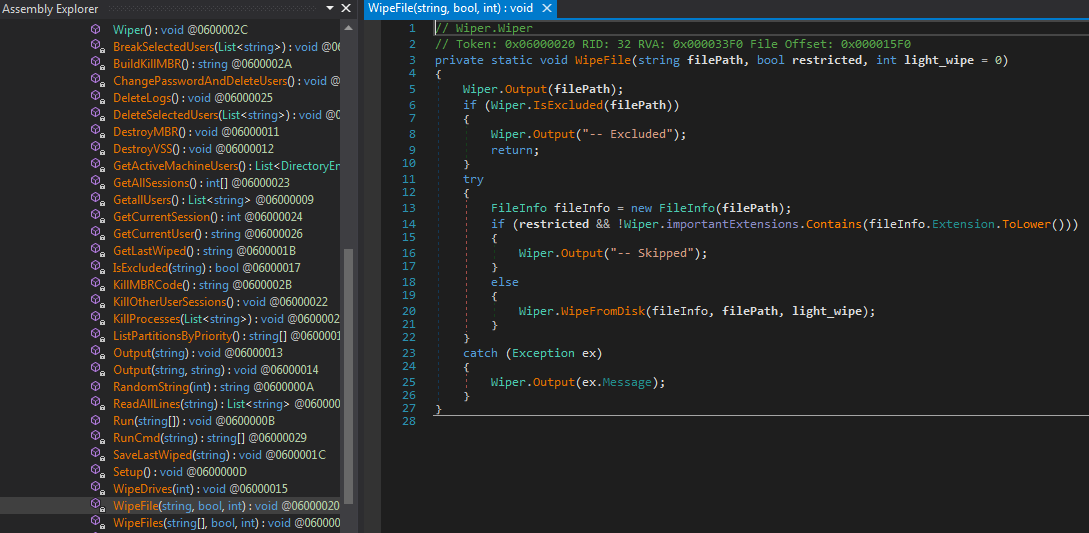

Figure 4 – Overview of the wiper capabilities.
The wiper has three modes to corrupt the files, and fills the bytes with random values:
light-wipe– Overwrite a number of chunks specified in the configuration.
full_purge– Overwrite the entire file content.
The wiper gets its configuration for the wiping process in one of these ways: in command-line arguments, or from the hardcoded default configuration and exclude list in the file
meciwipe.ini. The default configuration contains a pre-defined list of exclusions related to Windows OS and Kaspersky and Symantec security products, which are widely used in Iran:
"-light-wipe", "3", "-stop-iis", "-logs", "-shadows", "-processes", "*sql", "-mbr", "-fork-bomb", "-wipe-all", "-wipe-stage-2", "-wipe-exclude", "C:\\\\Windows", "-wipe-exclude", "C:\\\\$Recycle.Bin", "-wipe-exclude", "C:\\\\$WinREAgent", "-wipe-exclude", "C:\\\\Config.Msi", "-wipe-exclude", "C:\\\\Recovery", "-wipe-exclude", "C:\\\\Program Files\\\\IBM\\\\*", "-wipe-exclude", "C:\\\\System Volume Information", "-wipe-exclude", "C:\\\\Program Files\\\\Symantec*", "-wipe-exclude", "C:\\\\Program Files (x86)\\\\Symantec*", "-wipe-exclude", "C:\\\\Program Files\\\\Kaspersky*", "-wipe-exclude", "C:\\\\Program Files (x86)\\\\Kaspersky*", "-wipe-exclude", "C:\\\\Program Files\\\\Microsoft*", "-wipe-exclude", "C:\\\\Program Files (x86)\\\\Microsoft*", "-wipe-exclude", "C:\\\\Program Files\\\\Windows*", "-wipe-exclude", "C:\\\\Program Files (x86)\\\\Windows*"
If the malware has no arguments, it runs as a service named “
The main wiper function computes the FNV1A32 hash of every argument and uses that to determine the action:
|“-fork-bomb”||Start two more instances of the wiper, with the “-fork-bomb” argument as well|
|“-sessions”||–||Kill other users sessions with the cmd commands:
|“-delete-users”||file_path or list of users (* = all users)||Delete the specified users using the cmd command:
|“-break-users”||file_path or list of users (* = all users)||Break the specified users by changing their password to an 8-bytes random string appended with “
|“-logs”||–||Delete events from Windows Event Log using the cmd command:
|“-shadows”||–||Destroy shadow copies using the cmd command:
|“-start-iis”||–||Start Internet Information Services (IIS) with
|“-stop-iis”||–||Stop Internet Information Services (IIS) with
|“-config”||file_path||Read the arguments from the specified config file|
|“-light-wipe”||size||Corrupt only specified size of 1024-byte chunks in a file|
|“-wipe-exclude”||list of directories||Add the directories that the wiper won’t wipe|
|“-processes”||file_path or list of processes (* = all processes)||Kill the specified processes using the cmd command:
|“-wipe-only”||file_path or list of files||Add a list of files to wipe|
|“-wipe-all”||–||Wipe all the files with supported extensions|
DestroyMBR flag enables the malware to wipe the MBR by writing a hardcoded base64-encoded binary to the file
precg.exe and then running it.
precg.exe is an MBRKiller based on the Gh0stRAT MBR wiper.
The main wiping procedure starts by searching for the last file that was wiped. The malware writes its path to the file named
lastfile2 in the case of wipe_stage_2). Then, every file is checked to see if it is excluded or its extension is not in the predefined list:
".accdb", ".cdx", ".dmp", ".h", ".js", ".pnf", ".rom", ".tif", ".wmdb", ".acl", ".cfg", ".doc", ".hlp", ".json", ".png", ".rpt", ".tiff", ".wmv", ".acm", ".chk", ".docx", ".hpi", ".lnk", ".pps", ".rsp", ".tlb", ".xdr", ".amr", ".com", ".dot", ".htm", ".log", ".ppt", ".sam", ".tmp", ".xls", ".apln", ".cpl", ".drv", ".html", ".lst", ".pptx", ".scp", ".tsp", ".xlsx", ".asp", ".cpx", ".dwg", ".hxx", ".m4a", ".pro", ".scr", ".txt", ".xml", ".avi", ".dat", ".eml", ".ico", ".mid", ".psd", ".sdb", ".vbs", ".xsd", ".ax", ".db", ".exe", ".inc", ".nls", ".rar", ".sig", ".wab", ".zip", ".bak", ".dbf", ".ext", ".ini", ".one", ".rar", ".sql", ".wab~", ".bin", ".dbx", ".fdb", ".jar", ".pdf", ".rdf", ".sqlite", ".wav", ".bmp", ".dll", ".gif", ".jpg", ".pip", ".resources", ".theme", ".wma", ".config", ".mxf", ".mp3", ".mp4", ".cs", ".vb", ".tib", ".aspx", ".pem", ".crt", ".msg", ".mail", ".enc", ".msi", ".cab", ".plb", ".plt"
full_purge mode that overrides all the bytes of the file is always enabled for the files from the
".json", ".htm", ".log", ".html", ".lst", ".txt", ".xml", ".vbs", ".inc", ".ini", ".sql"
delete_files flag is enabled, the wiper also deletes the files after overwriting them.
We found additional forensics artifacts, submitted together with the wiper samples, that prove that the wiper was indeed executed in a TV environment:
lastfile2containing the path to the last wiped file:
C:\users\tpa\videos\captures\desktop.ini. This file is created only if the wiper was run in wipe_stage_2 mode, which deletes the files after the wiping procedures.
breakusufjkjdil.batfile, which shows that at least one instance of the wiper was supposed to run with the intent to kill existing user sessions and change passwords for all the users:
"c:\windows\temp\msdskint.exe" -break-users * -sessions
Service1. The logs contain a timestamp which is a few hours after the attack:

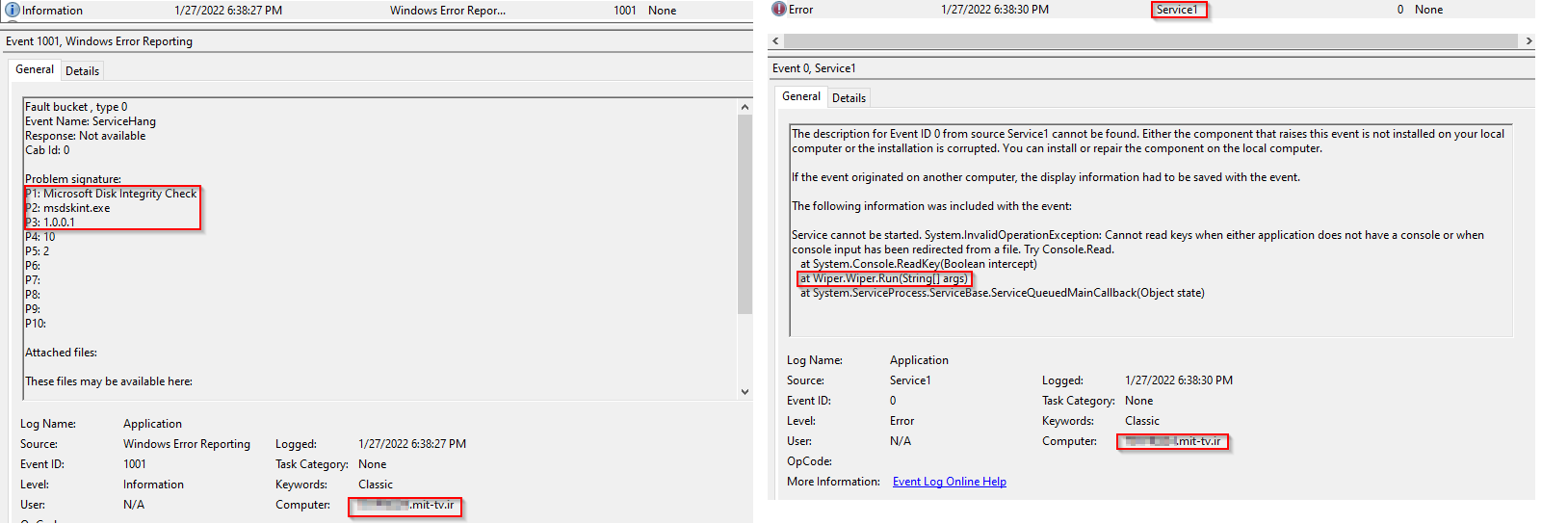

Figure 5 – Windows Event Viewer logs shows the wiper execution in the Iranian TV environment.
The name of this tool comes from the PDB path:
C:\work\winscreeny\winscreeny\obj\Debug\winscreeny.pdb. The main purpose of the backdoor is to make screenshots of the victim’s computer. We found two samples of this backdoor: the first one is the release version uploaded to VT with the name
mslicval.exe, and the second one is the debug version named
precg2.exe. Needless to say, these files were submitted to VT together with the other artifacts that we discovered.
The backdoor can be run in different ways, based on the command-line argument:
service– Runs as a service named Service1 . At start, the service creates a scheduled task with the command:
schtasks /create /TN \"Microsoft\\Windows\\.NET Framework\\.NETASM\"/TR \” <file_path> \" /ST <current_time + 1:10> /SC ONCE /F.
setup– Tries to gain privileges using the
LsaAddAccountRightsAPI function and then run itself as a service.
The malware listens for packets on port 18000, and for each packet, it checks if the message contains the
scr= command sent with the POST method. If these conditions are met, the malware saves a screenshot to a file named
screeny-<timestamp>.png and a “done” message is returned to the attacker if it succeeded.

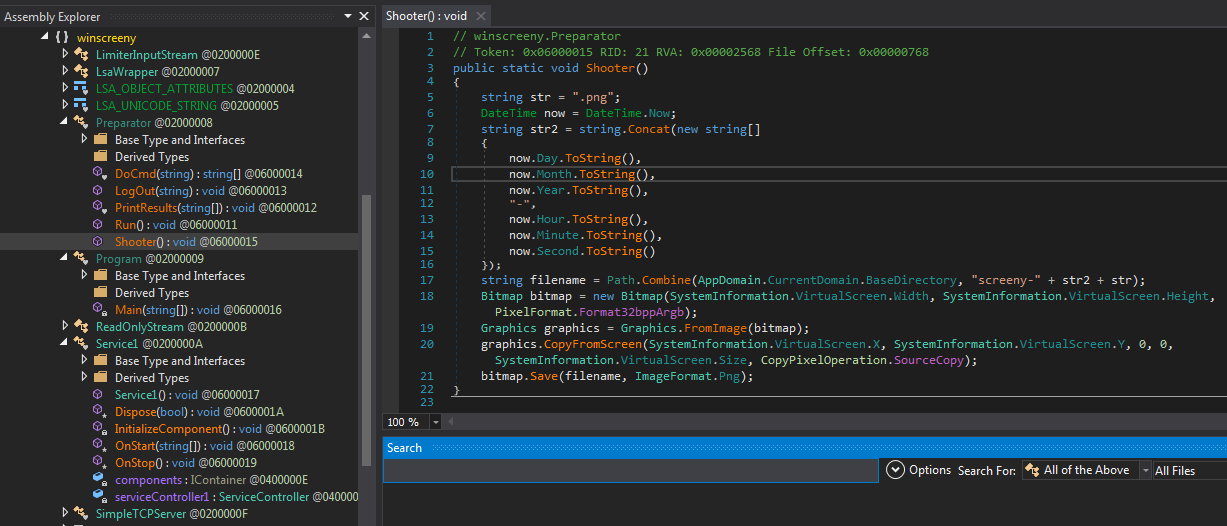

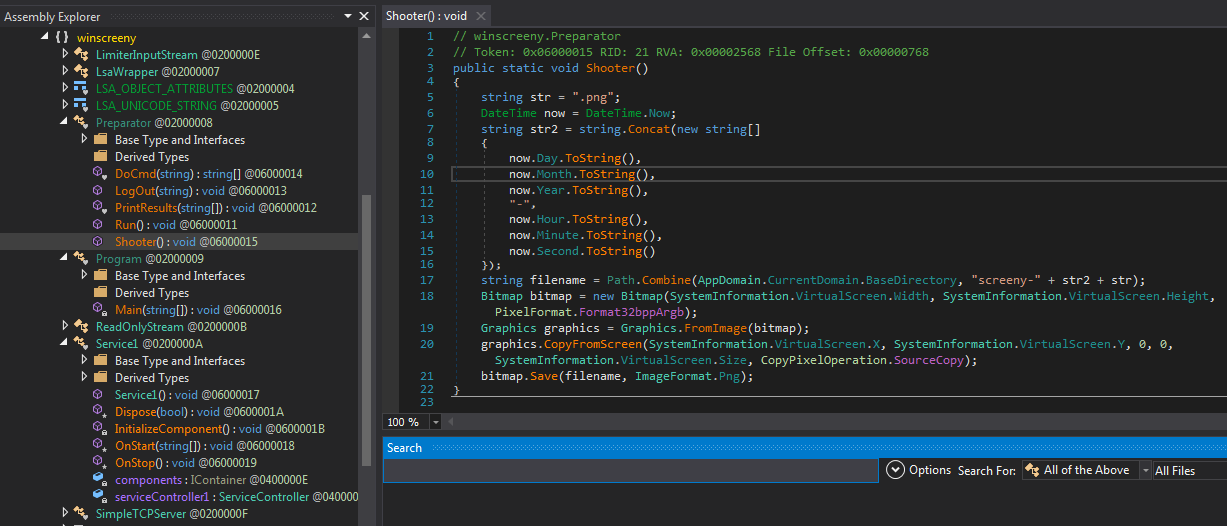

Figure 6 – Winscreeny screenshot capture code.
Interestingly, the release version of this malware is also capable of command execution: it supports the
s= command which gets a base64-encoded string XORed with 1-byte key 0x24. The decoded string is run by cmd and the execution result is returned to the server. The code that handles this feature is also reused in the HttpService backdoor that we discuss later.
HttpCallbackService is a Remote Administration Tool (RAT) with a familiar PDB path:
C:\work\simpleserver\HttpCallbackService\obj\Release\HttpCallbackService.pdb. Its C&C URL can be specified in two different ways: a command-line argument or the configuration file
callservice.ini. Next, the received value is appended with a short string:
?m= if the URL ends with “.aspx” or “.php”;
m=, if the URL ends with “/”, or
/m= in any other case.
Unfortunately, we didn’t find any configuration or other artifacts related to HttpCallbackService, so the C&C server in this attack remains unknown.
Every 5 seconds, HttpCallbackService sends a request to the C&C URL using the
webClient.DownloadString method to receive the list of commands split by ‘
\r\n’. If the malware doesn’t receive any commands in the last 5 minutes and the
isStayAliveMode flag is disabled, this time frame is increased to 1 minute.
These are the commands supported by the RAT:
|“upload”||upload_path, base64-encoded content||Upload a file to the victim’s computer. The server may send the file in chunks, each of them sequentially decoded from base64 and appended to the file|
|“download”||file name||Download file from the victim’s computer to C&C server, the file is base-64 encoded and sent in chunks of 102400 bytes|
|Default||command string||Run the command in cmd and return the result to the C&C server|
When the results of the commands are uploaded to the server, the data is sent to a slightly different URL: the C&C URL defined previously, now appended with “1”. The data is sent using the
WebClient.UploadValues method in the following format:
download=<file_name>\r\n--------------\r\n<base64 of chunk>for the download command
<command>\r\n--------------\r\n<result>for the cmd command.
HttpService is another backdoor that listens on a specified port: it can be a command-line argument, the pre-defined port depending on the sample, or the value from the configuration file:
<exe_name>.ini. We found several samples with the default ports 19336, 19334, 19333, as well as two different configuration files uploaded to VT, with 19336 and 19335 values.
Each sample has a hardcoded version. The files that we discovered belong to three different versions: 0.0.5, 0.0.11v4H and 0.0.15v4H. The version 0.0.5 listens to the specified port with a Simple TCP server, whereas 0.0.11v4H and 0.0.15v4H are based on the Simple HTTP Server. All of them use the HTML Agility Pack for HTML parsing and IonicZip library for compression actions.
The highest version (0.0.15v4H) of the backdoor has multiple capabilities, including command execution and manipulation with the files.
Command execution: The command “
cmd” makes the backdoor run the specified command with cmd.exe and return the result in this format:
<div style='color: red'><result_string></div>. In addition, the backdoor can launch an interactive cmd shell when it receives the “
i=” command, whose arguments can be:
1” – Get the output from the shell and send it back to the C&C.
2” – End the interactive shell and clean up.
Similar to WinScreeny, the malware also has the “
s=” command with the string XORed with 1-byte key
0x24 as an argument. The decoded string is run by cmd.exe and the result is returned to the server.
Proxy connections: After the “
p=” or “
b=” command is received, the backdoor uses the victim’s computer as a proxy to the URL it gets as an argument. The backdoor communicates with this URL, redirects the request of the C&C server, and waits for a response to send it back to the C&C.
Download and upload files: The “
f=” or “
1=” command allows the backdoor to download a file from the path given as an argument or write a file given as an argument with the content of the message body. After it receives the “
m=” command, the malware writes the body of the message to the path
<base_directory><client_address>.out, reads data from
<base_directory><client_address>.in, and sends it to the C&C. If the file does not exist, the malware creates the file and writes to it the current date and time.
Run SQL commands: The “
con=” / “
c=” command receives the SQL DB connection string and SQL query, and returns the result to the server.
Manipulate the local files: The “
<path>” command checks if the file/directory exists and then does one of these three things, based on the query value:
zip” – Creates a zip file from the directory contents and returns it to the C&C.
unzip” – Unzips the file using the path provided by the C&C.
del” – Deletes the file.
Interestingly, in all three cases, the malware sends back the entire directory contents (including sub-directories) as an HTML page that contains the
Delete buttons, depending on the type of the file. This is how the interface looks on the attackers’ side:
Figure 7 – HTML page with the directory listing returned to the C&C server.
The sample of HttpServer version 0.0.5 was submitted together with its dropper, called
dwDrvInst.exe, which mimics the remote access software executable by DameWare. The tool’s PDB path has the same pattern,
C:\work\ServerLaunch\Release\ServerLaunch.pdb. However, the tool is written in C++, not .NET like all the others, and was compiled on December 2, 2021, almost 2 months prior to the attack.
ServerLaunch contains three executable in resources, which it drops to
httpservice4, all in
C:\Users\Public\. The malware then starts both
httpservice4 with no arguments. Each of them has a different pre-defined port to listen on, which likely allows the attackers to ensure some sort of redundancy of the C&C communication.
We’ve discussed several different tools and some of artifacts related to their execution. It is clear that all these tools were created by the same actor and are connected. For example, the screenshot tool Winscreeny doesn’t contain the functionality to upload the created screenshots back to the attackers, which likely means that it relies on other backdoors to perform this operation. The recurring
Service1 name for all the tools indicates that different backdoors, if running on the same machine were mostly executed with command-line arguments or provided configuration files.
Taking into account that the samples are related to each other, we can substantiate the connection between these files and the IRIB cyberattack:

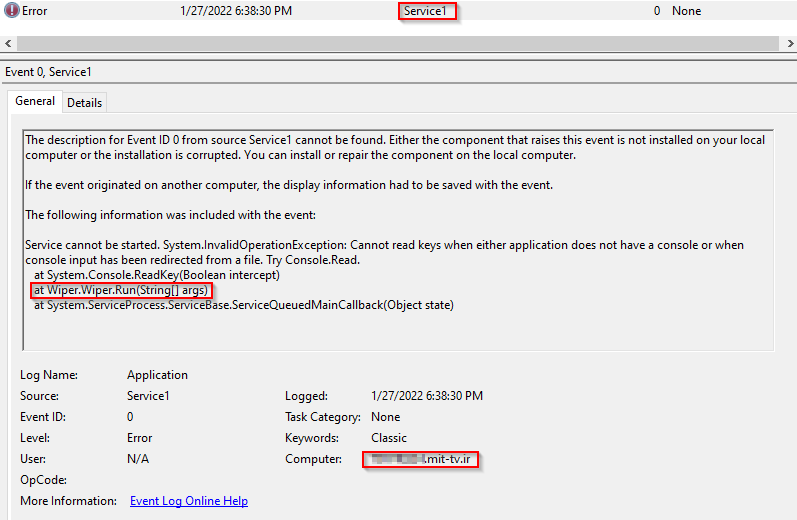

Figure 8 – Screenshot of the Application log that contains the wiper execution evidence.
MIT_FreeSizeService(md5:307e7440a15c8eed720566f067a2e96b) bears the IRIB logo, and the memory dump of the MetaSAN software called
executable.4504.exe(md5:1fc57ccec4668bbcbebaa9c734a437ba) features memory strings that indicate the software was run on the machine from the

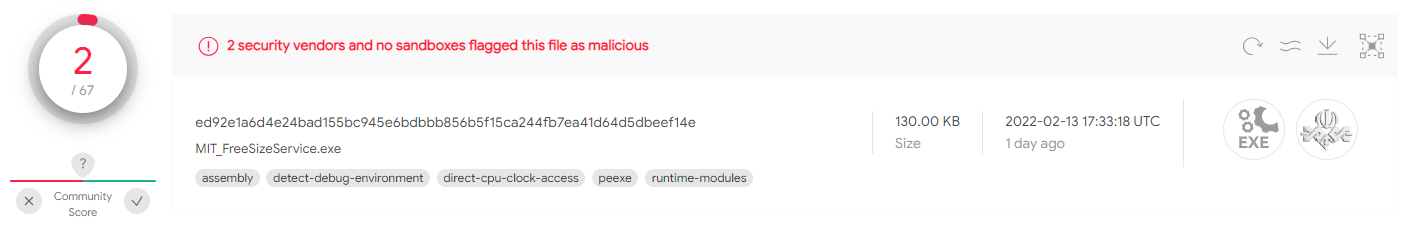

Figure 9 – VT submission of the unknown tool featuring the MIT (same as the domain name) string and containing the IRIB logo
Iranian officials appear to be confident that MEK is behind this attack, with the deputy head of technical affairs for Islamic Republic of Iran Broadcasting claiming the same. However, the opposition group itself denies any involvement, stating that “the group had become aware of the incident only when it happened but that the hacking might have been the work of supporters in Iran.”
The hacktivist group Predatory Sparrow, which claimed responsibility for the attacks against the national railway services, the transportation ministry, and the Iranian gas stations, affiliated itself with the IRIB attack via its Telegram channel. On the morning before the attack, they wrote “Wait for the good news from our team. Do not switch the channel.” Later the same evening, they posted a video from one of the disrupted TV channels, introducing it as a “cyber-attack on the country’s radio and television organization by the Predatory Sparrow team.” Currently, no technical proof of the group’s attribution to the attack has been discovered. The video displayed on the channel is available online and refers to a different Telegram account @GhyamSarnegouni, so the claims should be treated with caution.

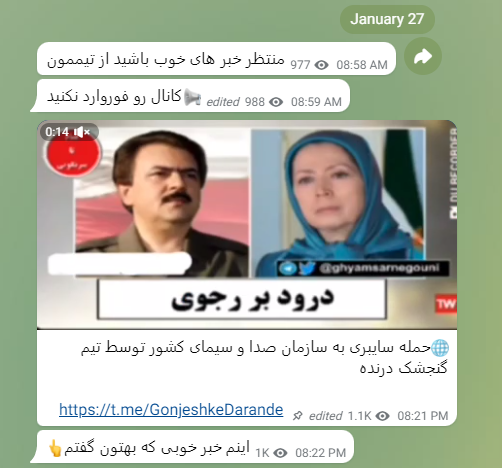

Figure 10 – Posts from ‘Predatory Sparrow’s Telegram channel, in which the group claims responsibility for the attack.
In this article, we analyzed a set of tools that likely was used in a cyberattack against the IRIB, which disrupted several state-run TV and radio channels. The use of wiper malware in the attack against a state entity in Iran begs us to compare the tools with those belonging to Indra, who, among other attacks, is responsible for unleashing a wiper in the Iranian Railways and Ministry of Roads systems. Although these wipers are coded and behave very differently, some implementation details such as execution based on batch files, or the password changing patterns (
[random sequence]aA1! for this attack and
Aa153![random sequence] in Indra’s case), suggests that the attackers behind the IRIB hack may have been inspired by previous attacks happened in Iran.
As in the case with Indra, it appears that the actor may have many capabilities that have yet to be explored. On the one hand, the attackers managed to pull off a complicated operation to bypass security systems and network segmentation, penetrate the broadcaster’s networks, produce and run the malicious tools that heavily rely on internal knowledge of the broadcasting software used by victims, all while staying under the radar during the reconnaissance and initial intrusion stages.
On the other hand, the attackers’ tools are of relatively low quality and sophistication, and are launched by clumsy and sometimes buggy 3-line batch scripts. This might support the theory that the attackers might have had help from inside the IRIB, or indicate a yet unknown collaboration between different groups with different skills.
Meanwhile, almost two weeks after the attack happened, MEK-affiliated news published a status report of the attack claiming that the “regime’s radio and TV networks have not returned to a normal status” and provided an elaborate list of affected devices with the statement “more than 600 servers, advanced digital production, archiving, and broadcasting of radio and television equipment have been destroyed, and their software has been damaged.” There is no way for us to verify these claims, but if at least some of them are true, the extent of destruction caused by the wiper and other malicious tools that we’ve discovered (and those that are yet unknown), exceeded expectations.
|a25215c9adce51a3ecfe34c802d3e7d865cf410ddbe10101e3b41f6ba11347a4||TSE_90E11.mp4||MP4 video file|
|0daa0aefdc6d0641eb06e62bc8c92a0696aa8089258cb2d3552ac137d53237ec||sec.evtx||security event log from one of the machines|
|a3b9bd57e6b281610e570be87883d907992bdf7be3bcd37885ee2cf97d930cd3||application.evtx||applications event log from one of the machines|
|067ae6ecfd108a79a32eb1a76a262868d8f3a9a7924b26091f0e2229152bdd9d||lastfile2||path to the last file wiped and deleted by the wiper|
